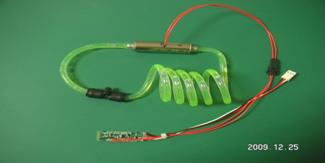

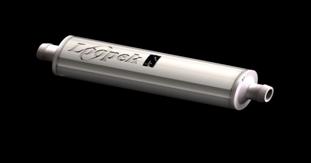

Micro AC/DC Water Pump |
|
|
|
1.Compact AC/DC water pump 2.High pressure capacity 3.capacity 4.Durable performance 5.Low power consumption 6.Submersible construction 7.No rotor 8.No ceramic shaft 9.No bearing 10.No impeller Low or no maintenance |
GENERAL SPECIFICATION 規格說明 |
Temperature Range (Liquid) |
10°C ~ 80°C, max -20°C ~ 100°C
50°F ~ 176°F, max -4°F ~ 212°F |
Designed Flow |
10 ~ 700 mL/min, pending input parameters |
Acceptable fluids |
Pure water (distilled water), R-OH solution,
and other fluids on request |
Inlet & Outlet Size |
4 mm ID, 7 mm OD, 1/4" barb |
Pump Dimension |
14.5 mm D x 64 mm L, 0.57" D x 2.5" L |
Pressure Head |
0.2 ~ 4 mH2O, 2 ~ 40 kPa, pending input parameters |
Operating Voltage Range |
5 ~ 24 V AC/DC (AC: less controller) |
Current |
100 ~ 800 mA |
Nominal Power |
4W ± 10% |
Noise Level |
30 dB ± 15% |
Weight |
< 30 g, < 1 oz |
Operating Life |
44,000+ hours |
|
|
For OEM use, customization is available, please contact us for more information |
|
|
|
|
|
